Interactive PV System Diagram

Click on any component to learn about its function and specifications

Solar Panels 150W MPPT Controller 12V 12V 12V 12V 12V 12V 12V 12V Battery Bank (48V) 2.4kW DC AC Inverter DC DC Loads AC AC Loads 863W Charging/Discharging 48V DC DC: 205W AC: 1400W

System Overview

Total Power: 2000W

Battery Voltage: 48V

System Type: Off-Grid Standalone

Solar Array Configuration

Design your solar array by configuring series and parallel connections

Solar Panel Selection & Array Configuration

6

Visual Array Layout

Selected Module Specifications

SunPower SPR-350-WHT
350W
29.8V
11.75A
36.3V
12.47A
-0.29%/°C
-0.27%/°C
+0.06%/°C

Array Output (STC Conditions)

2100W
82.6V
25.4A
98.4V
27.2A

Solar Site Analysis

Optimize your system performance by analyzing location and installation parameters

Location Selection

Selected Location:

Phoenix, AZ

Latitude: 33.4°N

Longitude: 112.1°W

POA Irradiance: 2200 kWh/m²/year

Data Source: NASA POWER (2024)

Installation Angles

33°
Optimal: 33°

Tilt Angle Guide: Optimal angle typically equals latitude ±15°. Steeper angles favor winter generation, flatter angles favor summer output.

Seasonal optimization: Latitude-15° for summer focus, Latitude+15° for winter focus, or adjustable mounting for year-round optimization.

180°
N (0°) E (90°) S (180°) W (270°)
North-facing optimal in Southern Hemisphere

Azimuth Angle Guide: 180° (South-facing) optimal in Northern Hemisphere for maximum sun exposure. In Southern Hemisphere, 0° (North-facing) is optimal as the sun travels through the northern sky.

Why it matters: Proper azimuth orientation can increase energy generation by 10-25% compared to east/west orientations.

Performance Impact

Calculate
Calculate
Calculate

Recommendations

  • Tilt angle is optimal for this location
  • South-facing orientation maximizes generation
  • Consider seasonal tilt adjustments

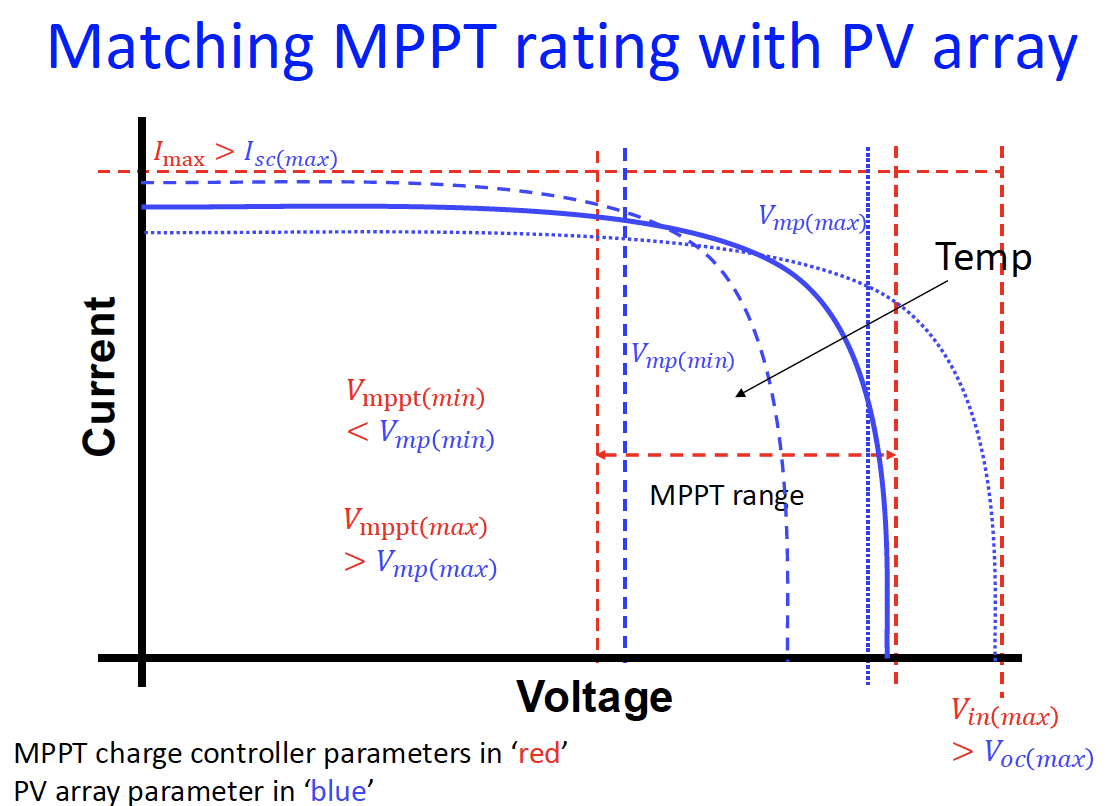

MPPT Charge Controller Selection

Select the appropriate MPPT controller for your configured PV array

Your PV Array Specifications

2100W
82.6V
25.44A
98.4V
27.21A

Available MPPT Controllers

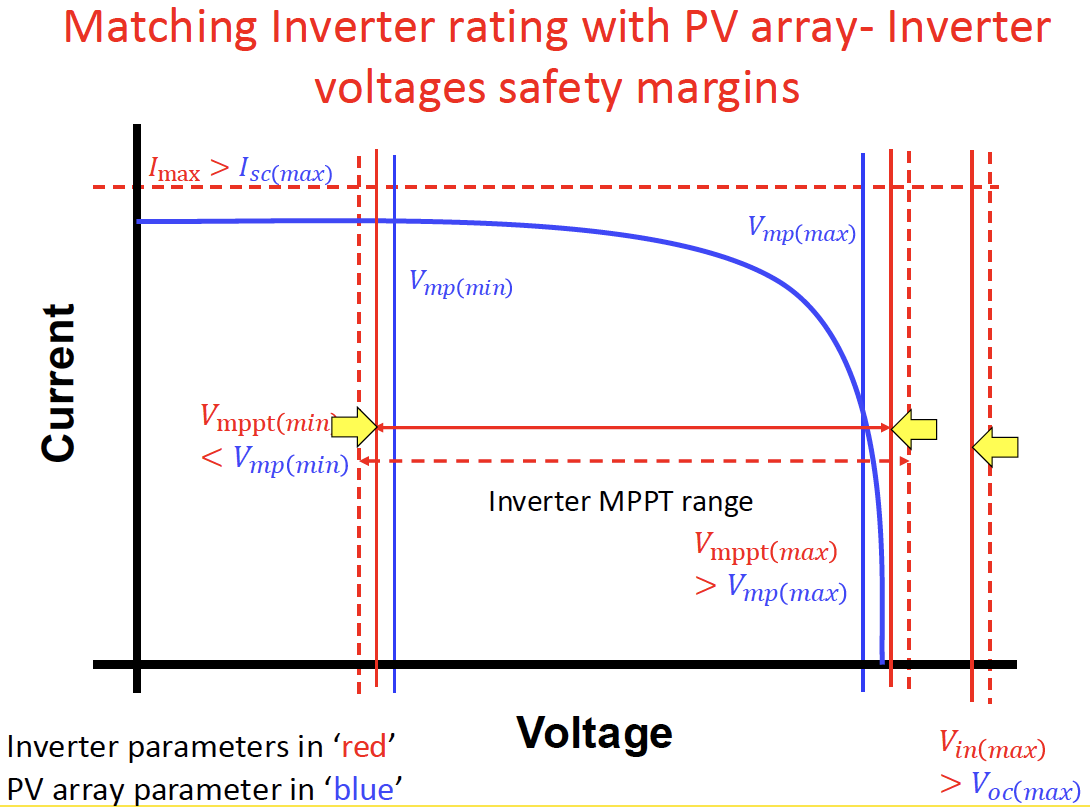

AC System & Inverter Selection

Complete your system with appropriate inverter selection

AC Load Requirements

Load Type Power (W) Hours/Day Daily Energy (Wh)
LED Lighting 200 6 1200
Refrigerator 150 8 1200
TV & Electronics 300 4 1200
Water Pump 750 1 750
Total 1400W - 4350Wh

DC Load Requirements

DC Load Type Power (W) Hours/Day Daily Energy (Wh)
LED Lights 50 8 400
DC Fans 25 10 250
DC Refrigerator 100 12 1200
Electronics 30 16 480
Total DC 205W - 2330Wh

Available Inverters

System Simulation

Analyze 24-hour system performance with interactive visualization

Simulation Parameters

Based on your selections
Phoenix, AZ
